What Is Aperture Telescope?

What Telescope Aperture Means

• when choosing a telescope, you’ll quickly discover that aperture is the most important specification.

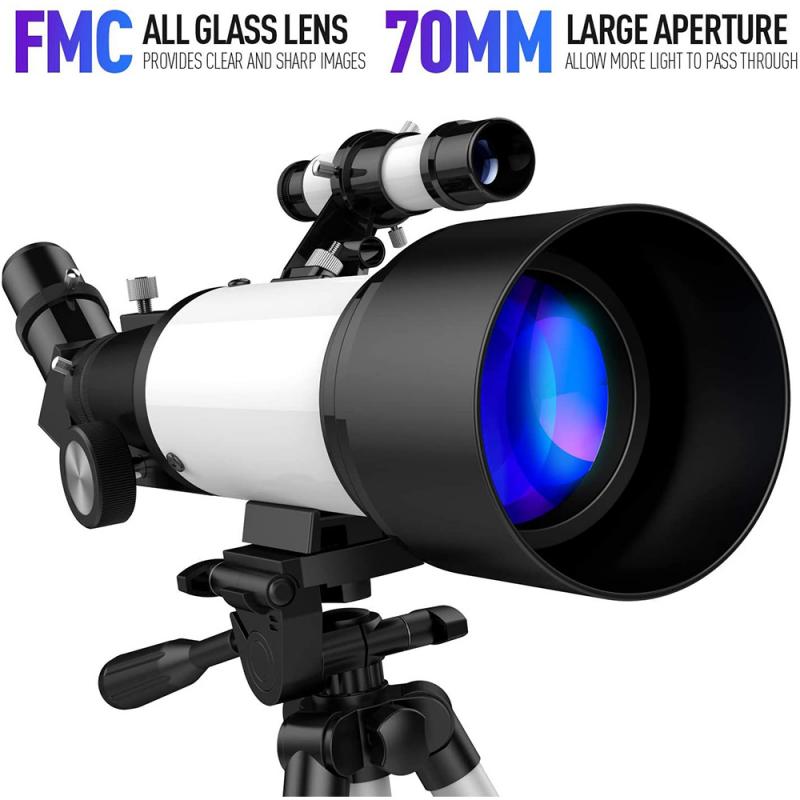

• aperture is the diameter of a telescope’s main lens or mirror, and it determines how much light the telescope gathers and how much detail you can see.
• unlike the photography world, where aperture refers to the camera lens’ focal ratio (f-stop), in the telescope world, aperture means the overall size (diameter) of the telescope’s optics.
• the most important specification of any telescope is the aperture, the diameter of the main lens or mirror of the telescope.
• the aperture of a lens or mirror is the diameter of its light collecting region.
• aperture is the diameter of the primary mirror (in a reflecting or catadiotropic telescope) or objective lens (in a refractor).
• 90mm is the aperture (not to be confused with what many in photography call the f stop).
• the aperture is the size of the primary lens/objective/mirror.
• in this case a 90mm glass diameter to let light through to the sensor.

Aperture, Brightness and Light Gathering

• more aperture makes for a brighter image.
• the aperture of a telescope determines two critical factors in astronomy: brightness and clarity.
• a wider aperture collects more light, which makes faint objects like galaxies and nebulae appear brighter in the eyepiece.
• light gathering is only done by the aperture, not the focal length.
• aperture determines brightness, at the same magnification, the image is going to be the same.
• the light-collecting ability of an objective lens or mirror is related to the square of the aperture.
• for reference, the aperture of a healthy and dark-adapted human eye is 7 mm.
• so even a modest telescope with a 100 mm aperture (about 4 inches) has (100/7)2 = 204 times the light-collecting ability of the eye.

Aperture and Clarity

• at the same time, a larger aperture increases resolution, meaning you’ll see sharper details on planets, star clusters, and the moon’s surface.
• aperture also influences most of the other key specifications of a telescope, including practical (but non-optical) specs like cost and weight.
• a good backyard telescope for us amateur stargazers has an aperture of 80 mm to 300 mm (3.15” to 12”) or more.
• some big billion-dollar professional telescopes have mirrors with anaperture of 10 meters (400 inches), about the size of a small trout pond.

Aperture and Resolving Power

resolving power

the resolution of a telescope is a measure of its abilityto distinguish small details of an object or to distinguish two very closely spaced objects from each other.

resolution is important when you’re trying to separate two closely-spaced stars, for example, or fine detail on the moon or a planet.

the resolving power of a telescope with an objective of aperture d (in millimeters) is

resolving power = 116/d (in arcseconds)

resolution is directly proportional to the aperture of a telescope.

a 200 mm scope can resolve details as close as 0.58 arcseconds, twice as well as a 100 mm scope, all other things being equal.

but the motion and instabilities in the earth’s atmosphere often limit the practical resolution of any telescope to 1″ or more.

Aperture, Focal Length and Focal Ratio

• first off, the two main measurements for a telescope are going to be the aperture and the focal length.
• the focal length is the distance from the initial optical element to the focal point where the light rays come together.
• the focal ratio, or f/ number, is the focal length divided by the aperture.
• the third key specification of a telescope is the focal ratio, which is the focal length divided by the objective diameter.
• lenses/telescopes can have a range of focal lengths at the same aperture size.
• if it had 600mm fl it would be a f/6.6 (600/90).
• a faster version may be a f/4.9 which would give you 440mm focal length (90x4.9).
• while a lot of scopes in the us measure aperture in inches, most often you will see focal length in millimeters.
• you will generally find it helpful to convert your aperture to millimeters when crunching the numbers.
• an inch is roughly 25.4 mm.
• so an 8" telescope is 203mm in diameter and a 10 is 254mm.

Aperture and Magnification

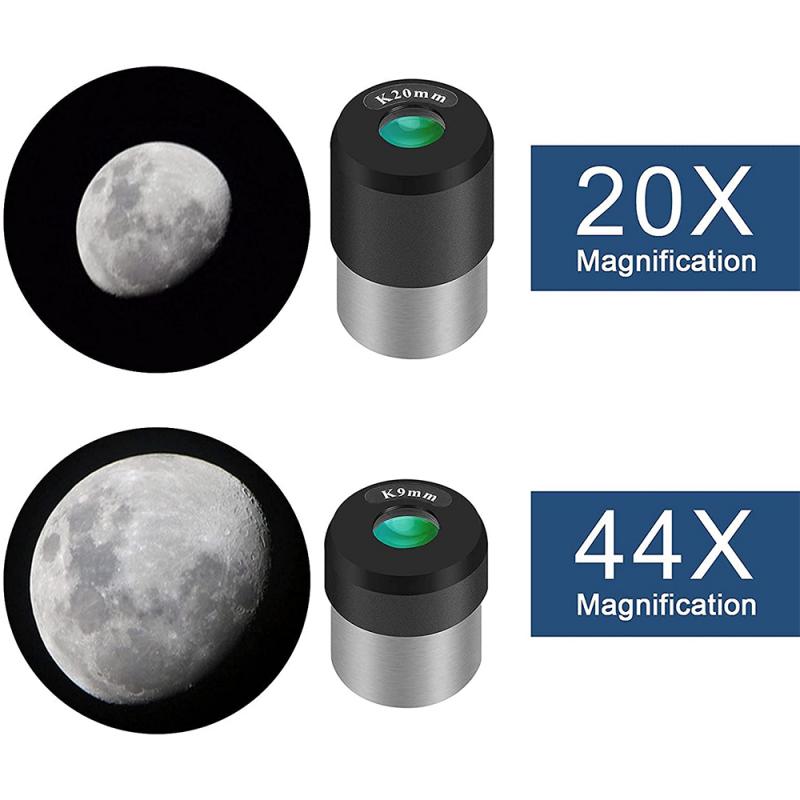

• magnification is calculated by dividing the focal length of the telescope by the focal length of the eyepiece.
• the eyepiece magnifies the image from the objective.
• the eyepiece also has a focal length.
• the magnification of a telescope and eyepiece is very simple to calculate.
• if the focal length of the objective is “f” and the focal length of the eyepiece is “f”, then the magnification of the telescope/eyepiece combination is f/f.
• for example, if a telescope has an objective lens with focal length of 1200 mm (about 48”) and it has an eyepiece of focal length 25 mm (about 1”), then it will have a magnification of 1200/25=48x.
• nearly all telescopes allow you to change eyepieces to get different magnifications.
• another rule of thumb… the maximum useful magnification of a telescope is about 50x the aperture in inches.
• any higher and the image gets too dim and fuzzy to be useful.
• so a 4-inch scope can get you about 200x before the image gets too fuzzy and dim, a 6-inch scope gets you 300x, and so on.
• this is not a hard-and-fast rule.

Aperture in Visual Observing and Astrophotography

• aperture does not play the same role in long exposure ap that it does for visual.
• it's about the amount of signal you can capture and how steady you can drive the scope.
• what these pictures have is a lot of time.
• now, you certainly don't need to have that much time to get a decent shot, but a few hours at least gives you enough signal to manipulate in post processing.
• i'm less worried about the aperture than i am the wide field.
• the brightness of stars, which are point sources of light,is influenced only by the telescope aperture.
