What Size Thread On Camera Tripod?

standard tripod thread sizes and camera thread sizes

• standard tripod thread sizes and camera thread sizes… these are standard throughout the world.
• the 1/4 – 20 unc thread is the standard on most consumer cameras.
• most cameras, tripods and other photo-equipment have mounting screws or threaded holes.
• if these do not match you have a problem.
• actually, matching a tripod and camera thread is easy.
• these threads are standard sizes.
• a variety of adapters are widely available and cheap.

iso 1222 and din 4503-1 / iso 1222

• practically all modern cameras and tripods use the same iso 1222:2010 thread.
• as long as the tripod you're purchasing has threads, it'll work with your 5d.
• the tripod thread is used to mount cameras on a tripod.
• for this purpose, each camera has a tripod thread on the bottom side.
• the tripod screw connects the camera to the tripod through a hole in the tripod head.
• for historical reasons the tripod thread is always a unc coarse thread.
• but the thread is mechanically more stable than a metric standard thread.
• standard for tripod thread din 4503-1 / iso 1222
• for the production of tripod connections or screw connections for camera threads / tripod threads according to din 4503-1 / iso 1222
• tripod threads are de facto standardized.

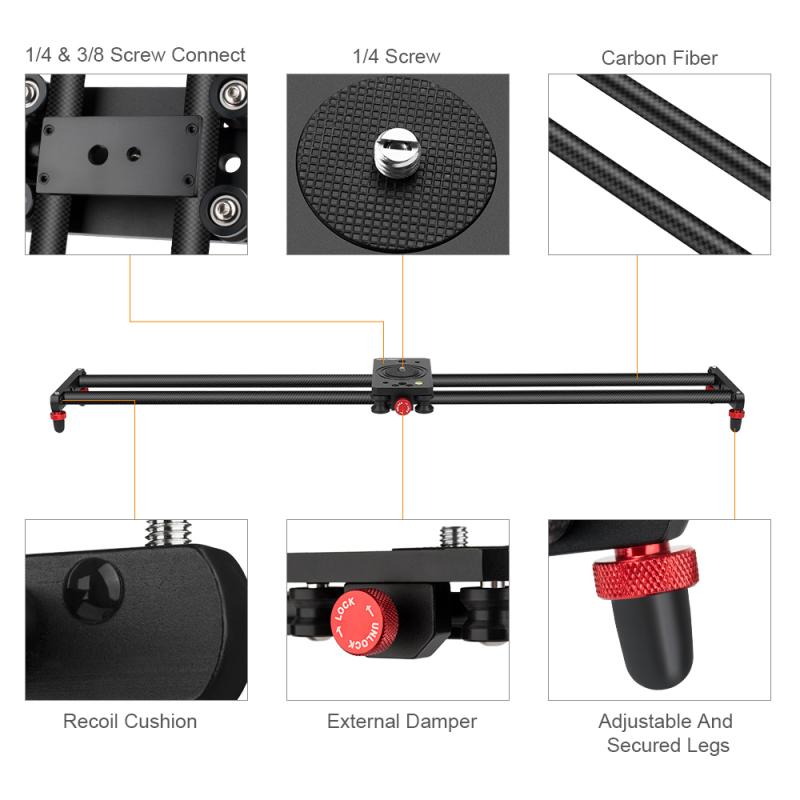

1/4″ 20 pitch unc unified coarse thread

• 1/4″ 20 pitch unc unified coarse thread (6.35mm outer diameter 5.35mm core hole diameter)
• 1/4″ 20 pitch unc unified coarse thread (6.35mm outer diameter 5.35mm core hole diameter) is used on viewfinder cameras, slr cameras up to medium format cameras, quick release plates and tripod heads.
• most consumer cameras are fitted with 1/4-20 unc threads.
• the 1/4 - 20 unc thread is the standard on most consumer cameras.
• “camera screw 1_4 original unc” features the original thread dimensions as defined for unc ¼-20 while “camera screw 1_4 3d printing” has a slight thread surface offset to compensate 3d printing effects.

3/8″ 16 pitch unc unified coarse thread

• 3/8″ 16 pitch unc unified coarse thread (9.52mm outer diameter 8.25mm core hole diameter)
• 3/8″ 16 pitch unc unified coarse thread (9.52mm outer diameter 8.25mm core hole diameter) is used on most medium format cameras and virtually all large format cameras, as well as most connections between tripods and tripod heads.
• larger, professional cameras and lenses may be fitted with 3/8-16 unc threads, plus a removable 1/4-20 unc adapter, allowing them to be mounted on a tripod using either standard.

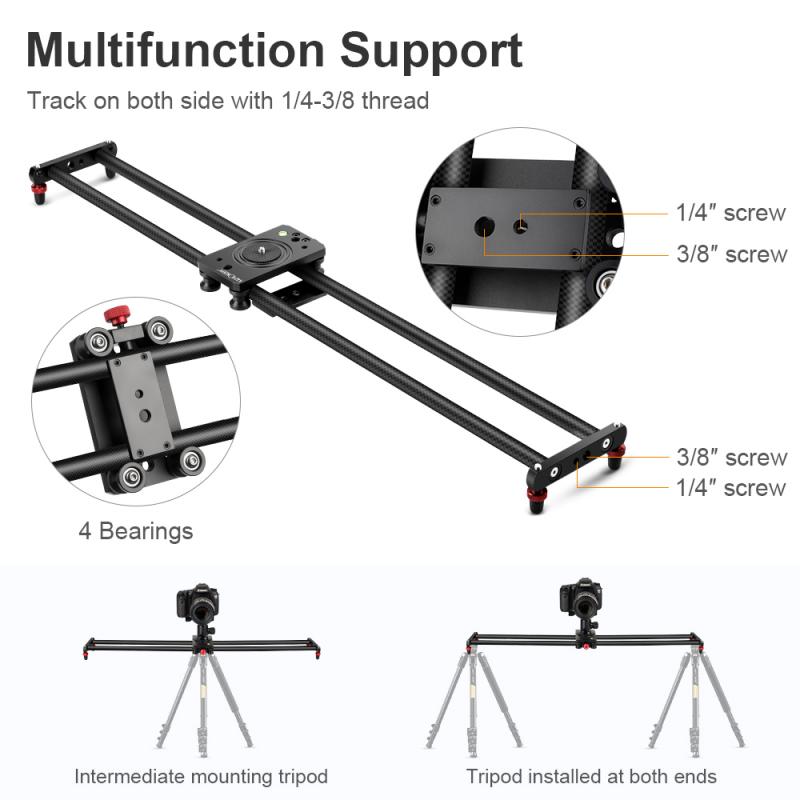

two tripod threads are prevalent in photography

• two tripod threads are prevalent in photography:
• 1/4" - 20 unc (small photography thread)
• 3/8" - 16 unc (large photography thread)
• the smaller tripod thread is primarily used in rangefinder cameras, single lens reflex (slr) cameras, medium format cameras, flash rails, quick-release plates, and tripod heads.
• in contrast, the larger tripod thread is used in most medium format and nearly all large format cameras, as well as most connections between tripods and tripod heads.

tripod thread position and use

• let's start with a thread that can be easily overlooked due to its positioning - the tripod thread, located at the base of the camera body.
• its role is paramount, as this tiny thread must provide secure support when using a tripod during photography.
• a tripod thread has a tough job.
• tripods are used when the camera needs to remain particularly still, e.g., during long exposure shots.
• the weight rests on a small, inconspicuous screw connection.
• this thread must be resilient, especially as the center of gravity shifts forward with larger lenses.
• in fact, very large lenses have their own tripod thread for additional stability.

unc thread and withworth regulation threads

• in practice, however, the screws, nuts and taps for 1/4″ withworth and 3/8″ withworth regulation threads (bsw) can also be used.
• the diameter and the pitch (distance between the threads) of both thread standards are the same here, only the flank angle differs.
• it is 60° for unc threads and 55° for withworth threads.
• for tripod threads this small inaccuracy can be overcome but is not necessarily recommended.
• tripod threads have their own standard, din 4503 (camera and accessory tripod connections).
• however, their dimensions are so similar to the unc thread that the two can almost be considered interchangeable.

checking camera thread size

• you can find what threads the camera has by going to a hardware store.
• get a 1/4-20 screw and a 3/8-16 screw, and see which one fits.
• it should be obvious.
• pretty much every tripod at a photo retailer will work with your camera.
• cameras and/or lenses are most typically attached to tripods by screwing a plate into the threaded insert on the camera and then clamping that plate to the tripod head.
• that threading is standardized, hence reference to the iso standard.

camera screw and tripod use

• this is a standard camera screw, as included with most tripods.
• warning: a plastic screw can not replace a metal screw, not even a s an emergency substitute.
• use this part only
• a) for lightweight cameras (i.e. drone cams, action cams)
• b) for applications in which the screw is the predetermined breaking point (like mounting a camera to drones, rc car or airplane models) or
• c) for applications in which the camera is not moved anymore after mounting (like a webcam or printer cam).
• these have the very same thread, but the non-threaded part is thicker, so they are somewhat sturdier.
