Compound Microscope with 4K Camera, 40X-2500X Magnification, PC Connection, Plan Optical System, Mechanical Stage, Kentfaith
In Stock
On Sale
£459.99
£574.99
20% OFF
Black Friday Deal
VAT free
FREE Shipping to United Kingdom,Ireland,India,Gibraltar,
Malta,Cyprus,South Africa,
CaymanIslands
Malta,Cyprus,South Africa,
CaymanIslands
Features
- * Professional 4K Camera Included: Kentfaith lab microscope comes with a 4K electronic eyepiece featuring an 8.3MP Sony sensor and a large 1/1.8" image sensor. It captures up to 99.8% of microscopic details with uncompromising clarity in 3840×2160 UHD resolution. Equipped with both HDMI and Type-C outputs, it enables real-time projection to monitors or PCs. Bonus: a free analysis software is included.
- * Lab-grade Plan Achromatic Optics (40X-2500X): See the difference with 4 lab-grade plan achromatic objectives (4X, 10X, 40X, 100X) that deliver a sharp, flat, and color-accurate image across the entire field. With high-eyepoint 10X and 25X WF eyepieces, this compound microscope offers a 40X-2500X magnification range, perfect for everything from basic biological studies to detailed cellular analysis.
- * Precision Double-Layer Mechanical Stage: The 125×115mm stage comes with specimen clips and a micrometer for 1.0mm precise movement along X and Y axes. Effortlessly explore different parts of your samples and return to exact positions. Low-handed coarse and fine focus, with 20mm coarse travel and 0.002mm fine precision, ensures fast, accurate focusing without repeated adjustments.
- * Advanced Illumination & Abbe Condenser: Achieve perfect lighting and subject control for any specimen. The LED provides cool, even, and flicker-free illumination with a stepless dimmer for fine-tuning brightness. The 1.25 NA Abbe condenser with an iris diaphragm allows you to precisely manage light for optimal contrast and resolution. Includes a filter holder to enhance observation flexibility.
- * Ergonomic Design for Ultimate Comfort: To customize the lab microscope to your viewing comfort, the eyepiece spacing can be easily adjusted from 48mm to 75mm. A ±5 diopter is available on the left ocular tube to compensate for asymmetry, and the ocular tubes are angled at 30° to accommodate a seated position without neck strain. The head can also be rotated 360° to accommodate multiple users.
£459.99
Shipping
FREE Shipping to United Kingdom,Ireland,India,Gibraltar,
Malta,Cyprus,South Africa,
CaymanIslands
Malta,Cyprus,South Africa,
CaymanIslands
Sale
⭐ 1. Automatic: Buy 2 Save 15%, Buy 4 Save 20%, Buy 6 Save 25% (Tiered discounts are not stackable with coupon codes.)
⭐ 2. Free Filter Pouch with orders over £60 and a free Bluetooth Earphones with orders over £100.
⭐ 2. Free Filter Pouch with orders over £60 and a free Bluetooth Earphones with orders over £100.

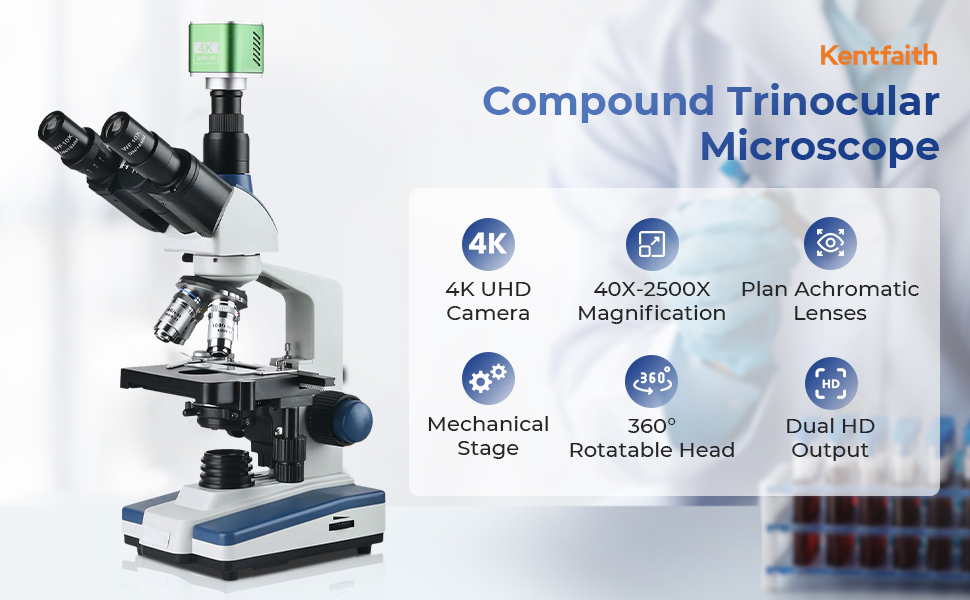

Kentfaith Trinocular Compound Microscope - Your Comprehensive Tool for Professional Research

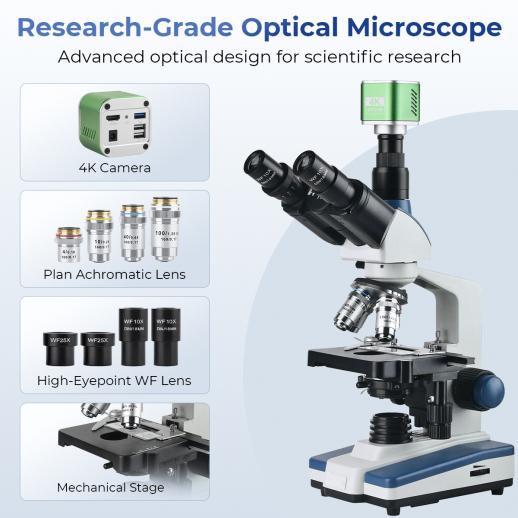

- Engineered for precision and clarity, this advanced lab microscope integrates a professional plan optical system (40X–2500X) with a mechanical stage and an included 4K imaging camera for data-rich visualization and analysis. Ideal for academic research, laboratory documentation, and scientific presentations, it provides researchers and educators with a powerful platform for detailed observation, measurement, and publication-quality imaging.
- Advanced Features:
- ㆍ4K Microscope camera with 8.3MP Sony sensor
- ㆍ40X-2500X magnification
- ㆍ4 DIN plan achromatic objectives
- ㆍWide-field 10X, 25X eyepieces
- ㆍDouble-layer mechanical stage
- ㆍDirect PC connection, FREE measurement tool
- ㆍ1.25 Numerical aperture for oil immersion, and an iris diaphragm
- ㆍ48–75mm interpupillary distance
- ㆍ±5° Diopter tuning
Enjoy a Bright, Distortion-free Image Every Time

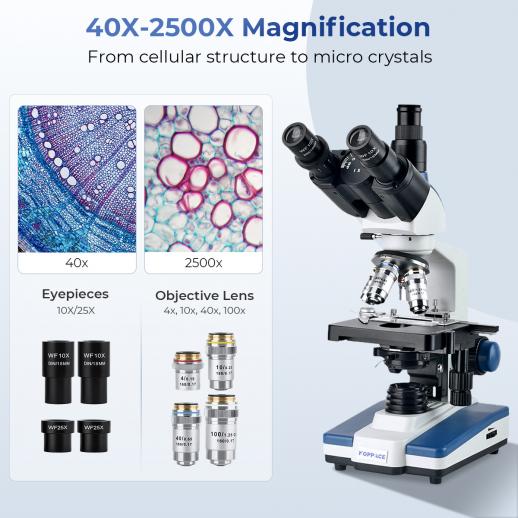

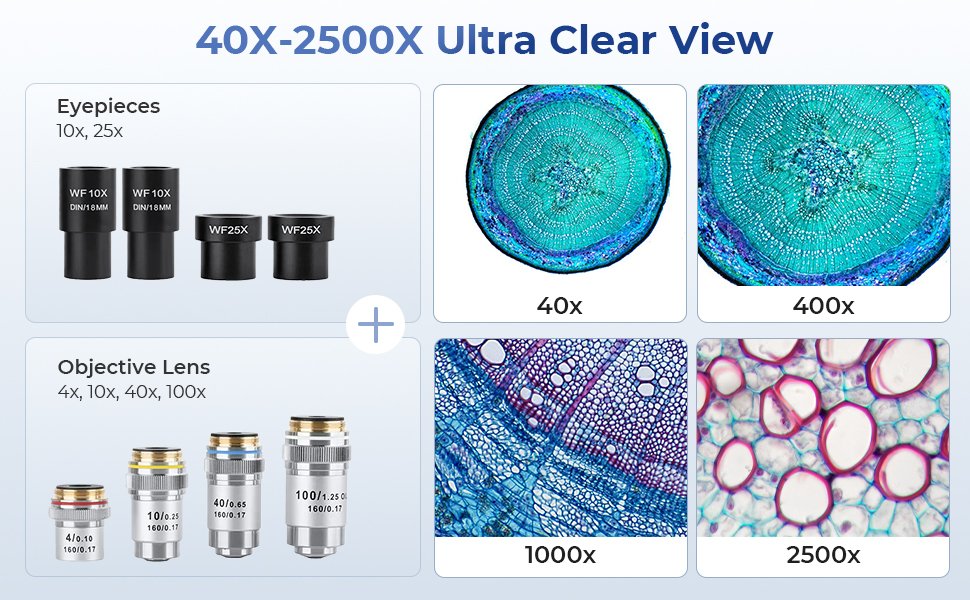

4 DIN achromatic objectives are pre-installed on a rotating turret, working with 10X and 25X eyepieces to provide 6 magnification levels: 40X, 100X, 250X, 400X, 1000X, and 2500X. Whether you’re observing the fine details of plant cell mitosis or the lively movement of plankton, you’ll always find the perfect zoom. The spring-loaded 40X and 100X objectives prevent slide damage and protect the lenses during close focusing.

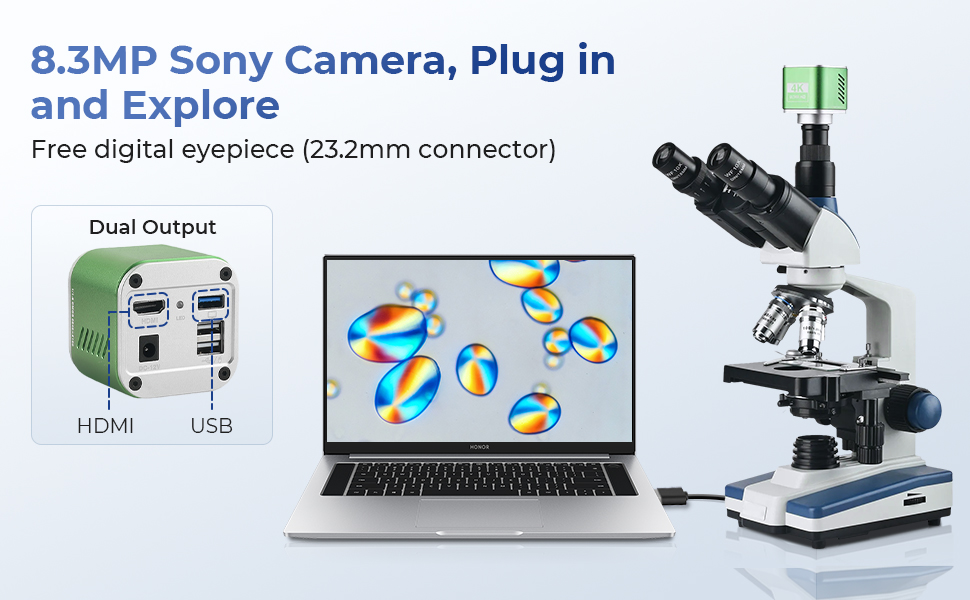

Real-Time Display & Professional Software Included

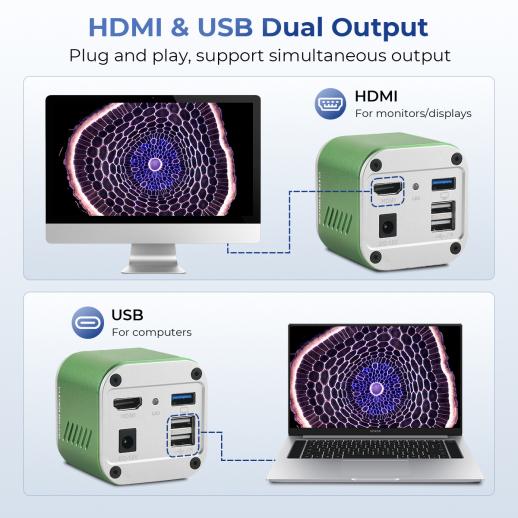

This camera features powerful dual outputs: use the HDMI port to stream a live, lag-free feed directly to any TV, monitor, or projector, perfect for classroom demonstrations or client consultations. Meanwhile, the USB port connects to your PC or Mac to access professional imaging software. Go beyond viewing to perform precise measurements, annotations, and image processing for publication-ready reports.

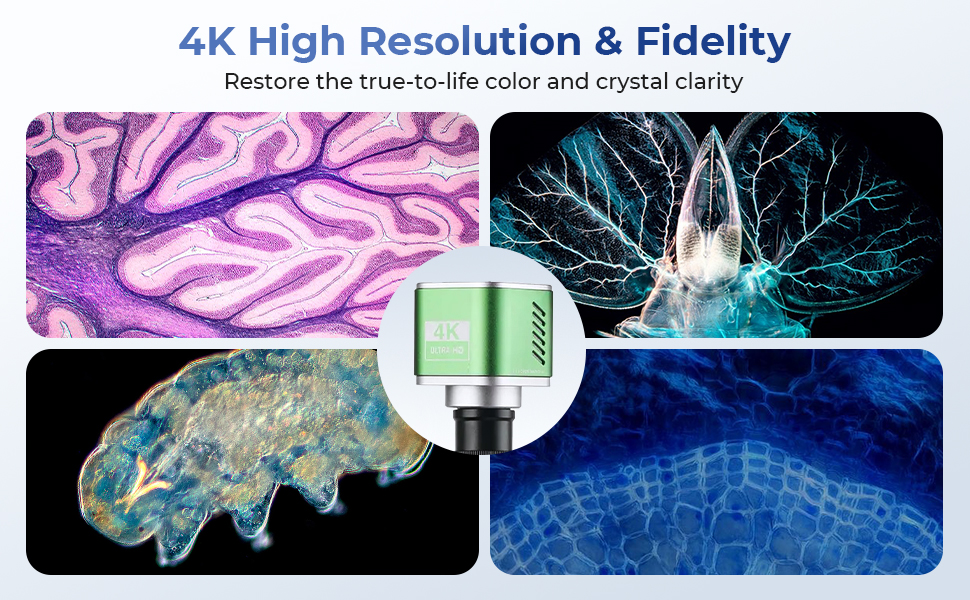

Capture Journal-quality Images

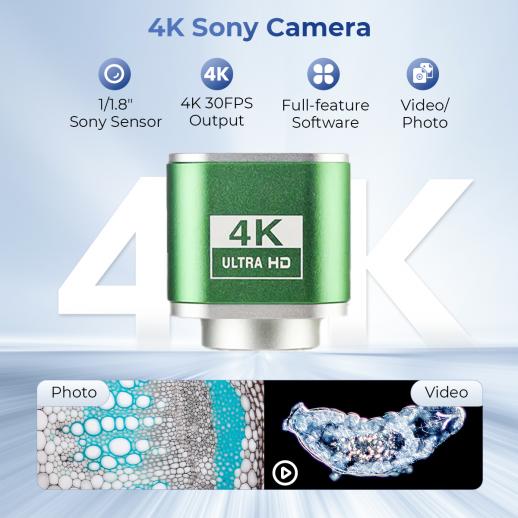

Capture your work with the clarity it deserves. We've included an 8.3MP microscope camera, featuring a large 1/1.8” Sony CMOS sensor, at no extra cost. It renders your specimens with lifelike detail in 4K resolution (3840x2160), revealing fine structures like neuronal synapses and faint fluorescent markers with brilliant precision. You’ll produce visually spectacular images that are perfect for impactful presentations, scientific posters, and journal submissions.

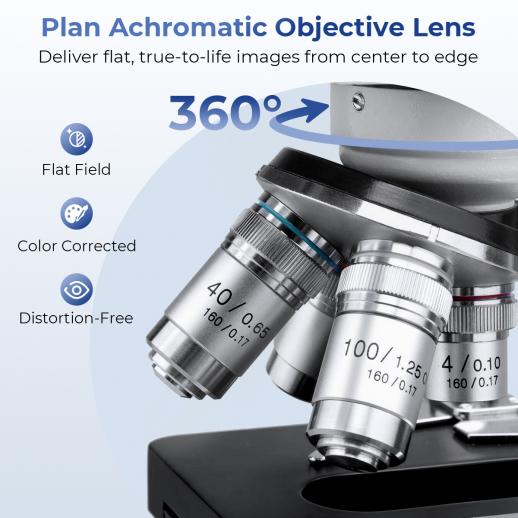

Lab-grade Achromatic Objectives

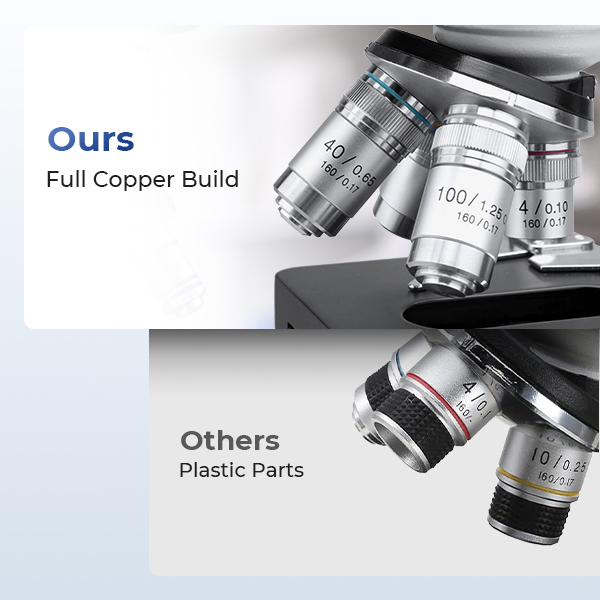

All objectives are crafted from solid copper, offering superior durability compared to plastic components. The 4 plan achromatic lenses (4X, 10X, 40X, 100X oil immersion) greatly reduce color fringing and deliver edge-to-edge sharp, flat-field clarity for professional observations.

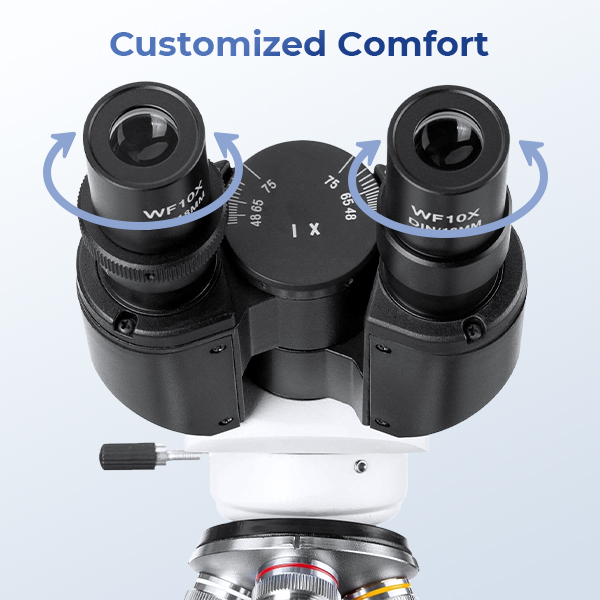

Personalized Clarity for Every User
Features ±5 diopter adjustment and 48–75mm adjustable interpupillary distance, allowing personalized setup for different users. The fully optical glass eyepieces with coated lenses deliver exceptional image clarity and refined craftsmanship for a truly professional viewing experience.
Bright, Daylight-Balanced Illumination

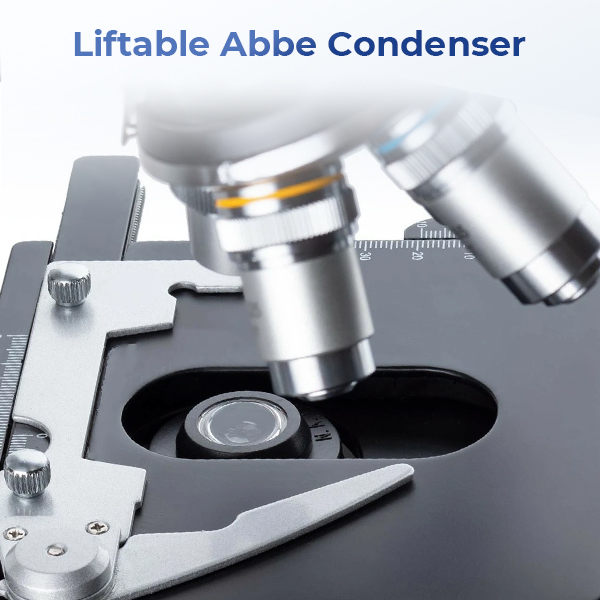

The LED sub-stage lighting with a stepless dimmer provides cool, energy-efficient illumination. The light-source is daylight balanced to produce natural colors for imaging. The 1.25 N.A. Abbe condenser with an iris diaphragm gathers more light and sharpens the image.
Ergonomic Trinocular Head

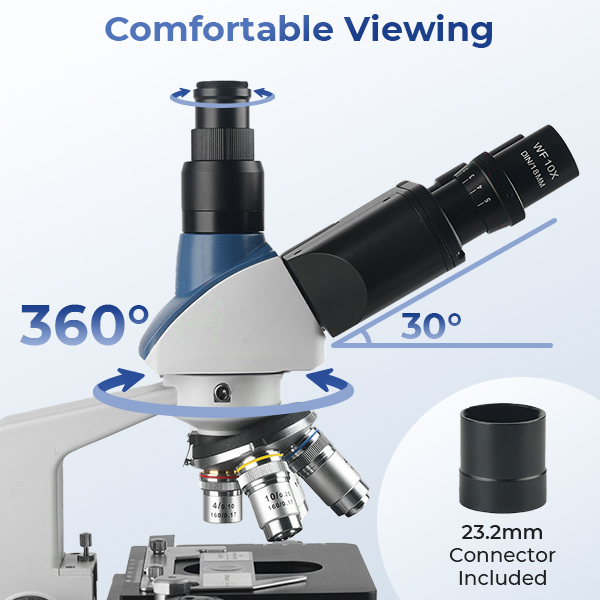

The trinocular head features a 30° ergonomic tilt to reduce neck strain and 360° rotation for flexible viewing from any angle. The camera detaches to reveal a 25mm trinocular port (23.2mm adapter included), ensuring compatibility with a wide range of cameras and digital eyepieces.

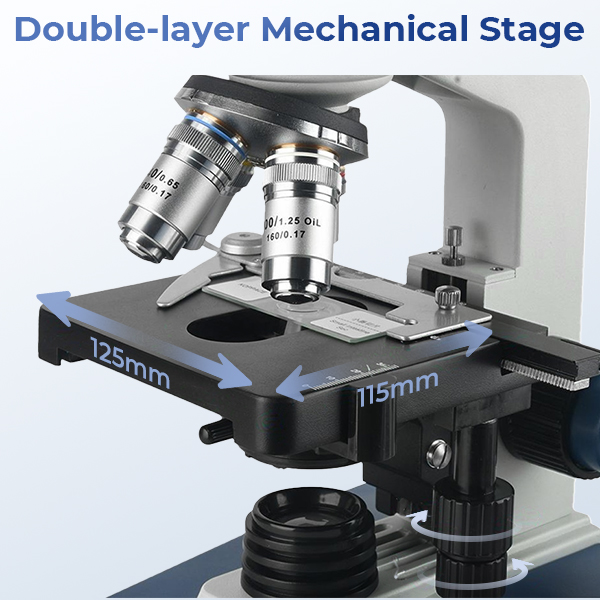

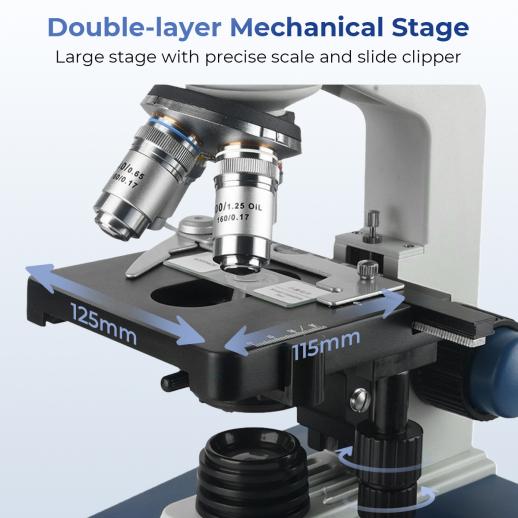

Explore with Precision and Ease
It features a double-layer mechanical stage measuring 125×115mm, with a smooth movement range of 76×52mm. Its 1.0mm stage division value allows you to record coordinates and return to exact points of interest for further analysis — an essential advantage when working at high magnifications.

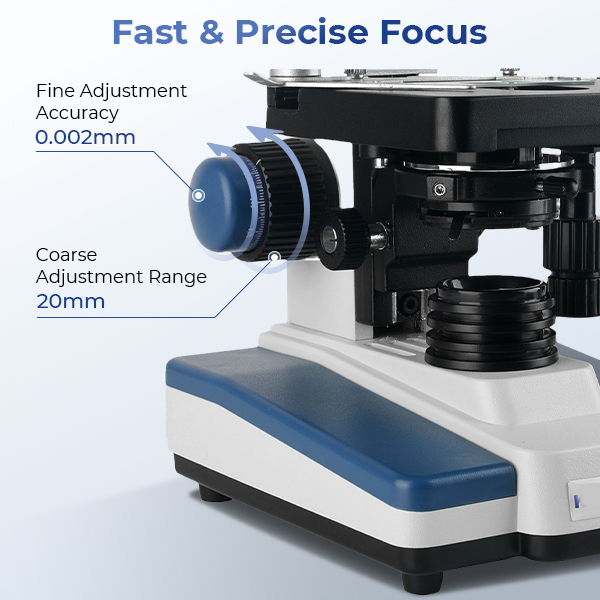

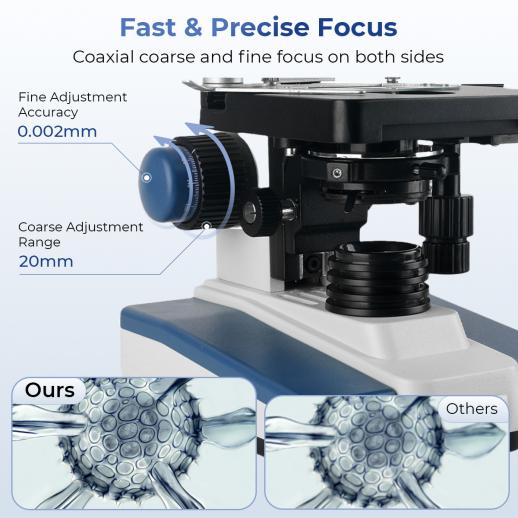

Quick & Sharp Focus
With low-position coaxial coarse and fine focus knobs on both sides, our compound microscope provides a 20mm coarse travel and a 0.002mm fine precision. You can quickly find the target and pinpoint the details, saving you time and frustration during long sessions.

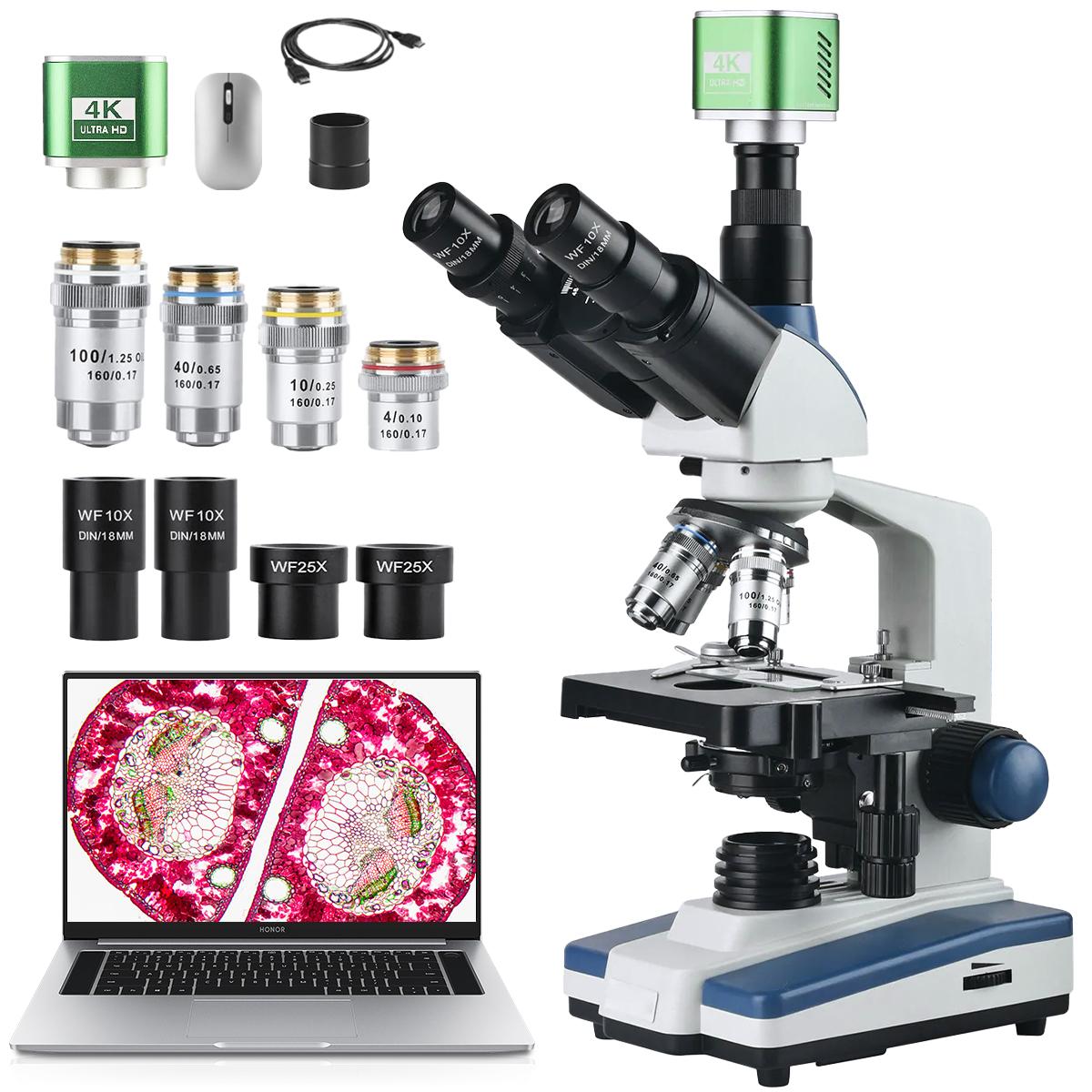

What You Will Get:
- 1 x Lab Microscope
- 2 x WF 10X Eyepiece
- 2 x WF 25X Eyepiece
- 1 x 23.2mm Connector
- 1 x 4K Microscope Camera
- 1 x HDMI Cable
- 1 x USB Cable
- 1 x Power Cable
- 1 x Mouse
- 1 x Dust Cover
- 1 x Calibration Slide
- Worry-Free Purchase
- If you run into any issues with our compound microscope, feel free to contact us immediately. Our friendly customer support team is ready to help you with any questions or concerns, and we promise to get back to you within 1 working day. We appreciate you choosing Kentfaith, and we're committed to ensuring your satisfaction every step of the way.
| Specification | |
|---|---|
| Optical Magnification | 40X, 100X, 250X, 400X, 1000X, 2500X |
| Digital Magnification | 308X–7705X |
| Optical System | Finite optical system |
| Eyepieces | High-eyepoint wide-angle WF10X/DIN18mm, WF25X/8mm |
| Objectives | Achromatic objectives Objective Specifications: 4X/0.1 WD 36.5mm, 10X/0.25 WD 7.6mm, 40X/0.65 WD 0.53mm, 100X/1.25 WD 0.13mm |
| Viewing Head | Trinocular head inclined at 30°, 360° rotatable, interpupillary distance 48–75mm |
| Focusing Mechanism | Coarse and fine coaxial focusing, coarse travel 20mm, fine division 0.002mm |
| Stage | Double-layer mechanical stage, size 125mm×115mm, movement range 76mm×52mm, with specimen holder |
| Revolving Nosepiece | Quadruple nosepiece with steel balls for positioning |
| Power Supply | External power switch, input AC100–240V, output DC 5V/1A |
| Condenser | NA=1.25 Abbe condenser with iris diaphragm and filter holder |
| Illumination | LED light source, 1W, flicker-free |
| Camera Adapter | 1X trinocular interface + 1 x 23.2mm connector, compatible with 25mm/23.2mm camera or digital eyepiece |
| Image Sensor | 8.3MP |
| Output Interface | HDMI/USB |
| Sensor Type | 1/1.8", SONY IMX334 |
| Languages | Supports Chinese, English, Korean |
| Video Resolution | 3840×2160@30FPS, 1920×1080@30FPS |
| Pixel Size | 2.0μm×2.0μm |
| Image Resolution | 4K (30fps), 1920×1080 (30fps) |
| Image Orientation | Horizontal and vertical flipping |
| Image Format | JPG/PNG/BMP, USB storage supported |
| Storage Medium | U disk, mouse control, camera control |
| Crosshair Measurement | Supports various line colors (white, red, green, blue, yellow, black, cyan, orange, purple, gray) |
| Measurement Display | Pixel, μm, mm, cm, inch, mil |
| Digital Zoom | 1X–6X continuous zoom |
| Comparison Display | Dual/quad split screen |
| Measurement Functions | Line, parallel lines, rectangle, polygon, angle, circle, arc, diameter, radius, distance, arbitrary lines, text labeling |
FAQs
A
Yes, you can replace the micrsocope camera if needed. The trinocular port supports 25mm eyepieces tubes, and the package comes with a 23.2mm connector, allowing you to connect 25mm or 23.2mm digital eyepieces or cameras.
Show More
A
A3: Kentfaith lab microscope supports both HDMI and USB output, making it easy to connect to monitors, projectors, or computers for live observation and recording.
Show More
A
It operates on AC100–240V input with DC 5V/1A output, compatible with international voltage standards.
Show More
A
It’s equipped with a high-performance SONY IMX334 1/1.8" sensor with 8.3 megapixels, providing excellent color accuracy, low noise, and high-resolution 4K imaging.
Show More
A
Kentfaith compound microscope features a 1W LED light source with adjustable brightness, providing stable, flicker-free lighting for both brightfield and low-light observations.
